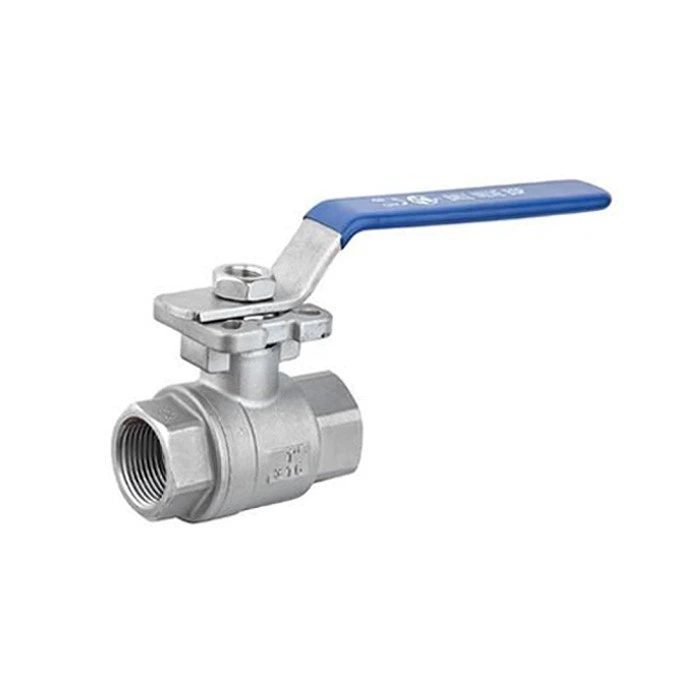

2 Piece Stainless Ball Valve
Description & Features
2 Piece Stainless Ball Valve is made of stainless steel and has a spring-return lever handle and female National Pipe Taper (NPT) threaded connections on both ends. This valve is made of stainless steel for resistance to corrosion and has a stainless steel spring-return handle with a vinyl sleeve for manual on/off control. This valve closes automatically when its spring-return lever is released, ensuring that the valve is open only when an operator is at hand.
● Made of stainless steel for resistance to corrosion.
● Stainless steel spring-return lever handle to ensure the valve is open only when an operator is at hand.
● Pounds per square inch (gauge) (psig) rating of 2,000 for water, oil, and gas (WOG) for 1/4" to 1" valves; 1,500 for 1-1/4" to 2"; and 150 for saturated steam.
● Female National Pipe Taper (NPT) threads on both ends for connecting to male threaded pipes.
● PTFE seats and stem packing reduce the risk of valve leakage.
Specifications
Size Range | Body Material |
1/4"-4" DN10-DN100 | CF8, CF8M, CF3, CF3M |
Pressure Rating | Ball Material |
1000WOG, 2000WOG | SS304, SS316, SS304L, SS316L |
End Connection | Seat Material |
Flange, BSPT, NPT, SW, BW | RTFE |
Structure Style | Stem Material |
Full Port, With/Without Top Mounted | SS304, SS316, SS304L, SS316L |
Actuator Options | Design Standard |
Manual, Pneumatic, Electric | ANSI B16.34, GB/T 12224 |
Temperature Range | Face to Face Standard |
-20℃~280℃ | ASME B16.10, GB/T 12221, GB/T 15188.1 |
Connection Standard | Test Standard |
Flange Drilling: ASME B16.5, GB/T 9113, JB/T 79 | API 598, GB/T 13927 |
Brand | DAGO or OEM |
Test | 100% quantity tested before delivery |
Guarantee | 12 months from date of shipment or Negotiable |
MOQ | 1 Set |
Sample | Available |
Color | Customer required or manufacturer default |
Packing | Plastic bag wrapped inside, seaworthy wooden case outside |
Certificate | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
Country of Origin | Zhejiang, China |
HS Code | 848180 (universal), 8481804090 (China) |
Port | Shanghai or Ningbo |
Payment Terms | T/T, L/C, Western Union |
