Description & Features

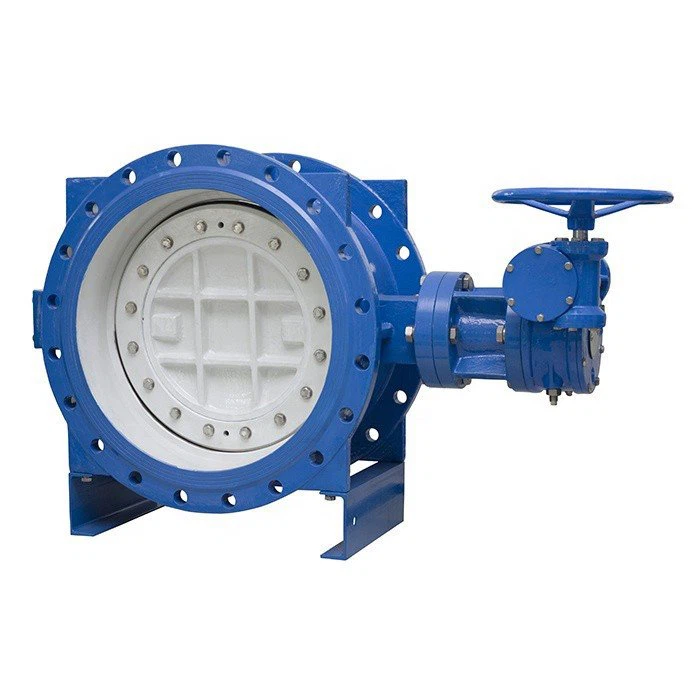

Double Eccentric Butterfly Valve is an innovative double offset design product with advanced world leading technology. This butterfly valve has a unique structure with ultra reliable sealing performance, wide working conditions and low operation torque.

● Rocker-shaped gland bridge compensates for uneven adjustment of gland nuts reducing packing leaks.

● Integrally cast disc position stop perfectly locates the disc in seat, achieving maximum seat and seal life.

● Extended neck allows for 50 mm (2″) of pipeline insulation.

● Integrally cast mounting pad provides direct mounting of actuators eliminating the need for costly brackets and couplings.

● Flattened body bore at shaft journal ports positions shaft bearings near disc, providing maximum shaft support resulting in reduced wear and longer life.

Specifications

Size Range	Body Material
2"-80" DN50-DN2000	WCB, CF8, CF8M, CF3, CF3M, WC6, LCB etc.
Pressure Rating	Disc Material
Class150 PN6-PN25	WCB, CF8, CF8M, CF3, CF3M, WC6, LCB etc.
End Connection	Seat Material
Flange (RF, RJ), Butt Welding, Lug, wafer	PTFE, EPDM, NBR, RPTFE
Structure Style	Stem Material
Full Port, Double Eccentric	17-4PH, SS410, F304, F316, F51, F53
Actuator Options	Design Standard
Lever, Worm Gear, Pneumatic, Electric.	API 609, MSS SP-67, MSS SP-68, DIN3354, EN558, JIS B2071
Temperature Range	Face to Face Standard
-50℃~650℃	ANSI B16.10, MSS SP-68, EN558-1, JIS B2002
Connection Standard	Test Standard
Flange Drilling: API609, ASME B16.5, ASME B16.47, EN1092, JIS B2220, GOST 12815 Butt Weld: ASME B16.25, GB/T 12224	API598, EN12266.1, JIS B2003

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
