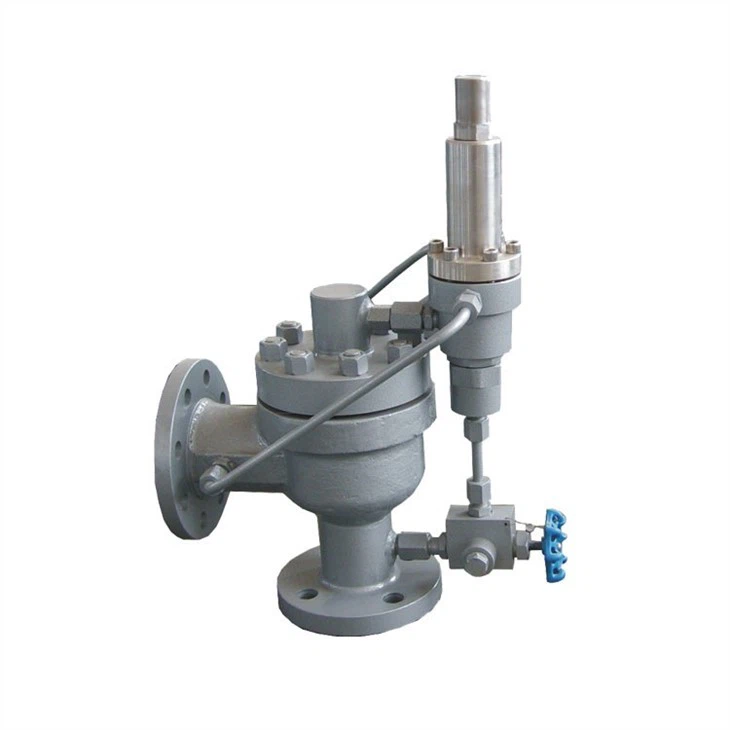

Pilot Operated Safety Valve
Description & Features
Pilot operated safety valve, newly -structure, is mainly applied to such trades as petroleum & natural gas, Chemistry, electric, metallurgy & burning gas. It is the best super-pressure protecting equipment on press equipment, Container, or pipeline. It is mainly characterized by shifting direct function of spring to indirect function of guide valve, What's more, main valve, applying for sleeve piston & double sealed seat, It is characterized by high precision of action, good recycling function, fast turning back to seat, ability to high-pressure leaking, long working time & security, together with read-adjustment on line, automatic turning back to seat after leaking again and again, tight closure, operating and maintaining convenience.
● Pilot operated safety valve, newly-structured, is mainly applied to such trades as petroleum & natural gas, chemistry, electric, metallurgy & burning gas etc.
● It is the best super-pressure protecting equipment on press equipment, container, or pipeline.
● It is mainly characterized by shifting direct function of pilot valve to indirect function of main valve.
● The main valve, applying for sleeve piston, is characterized by high precision of action, good recycling function, fast turning back to seat, ability to high-pressure leaking, long working time & security, together with readjustment on line, automatic turing back to seat after open again and again, tight closure, operating and maintaining convenience.
Specifications
|
Size Range |
Body Material |
|
1"-8" DN25-DN200 |
WCB, LCB, CF8, CF8M, CF3M |
|
Pressure Rating |
Disc Material |
|
Class150-Class900 PN16-PN160 |
304+F46, 316+F46, Monel+F46, 316L+F46 |
|
End Connection |
Spring Material |
|
Flange (FF, RF, RJ) |
316, Inconel |
|
Structure Style |
Stem Material |
|
Pilot Operated, Angle |
A182 F6a, 304, 316, 17-4PH, F11. |
|
Actuator Options |
Design Standard |
|
Pilot Operated |
API RP 520 |
|
Temperature Range |
Face to Face Standard |
|
-196℃~650℃ |
API 526 |
|
Connection Standard |
Test Standard |
|
Flange Drilling: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79 Butt Weld: ASME B16.25, GB/T 12224 |
API 527 |
|
Brand |
DAGO or OEM |
|
Test |
100% quantity tested before delivery |
|
Guarantee |
12 months from date of shipment or Negotiable |
|
MOQ |
1 Set |
|
Sample |
Available |
|
Color |
Customer required or manufacturer default |
|
Packing |
Plastic bag wrapped inside, seaworthy wooden case outside |
|
Certificate |
API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
|
Country of Origin |
Zhejiang, China |
|
HS Code |
848140 (universal), 848140000 (China) |
|
Port |
Shanghai or Ningbo |
|
Payment Terms |
T/T, L/C, Western Union |
Product Details
(上传产品样本)
