Description & Features

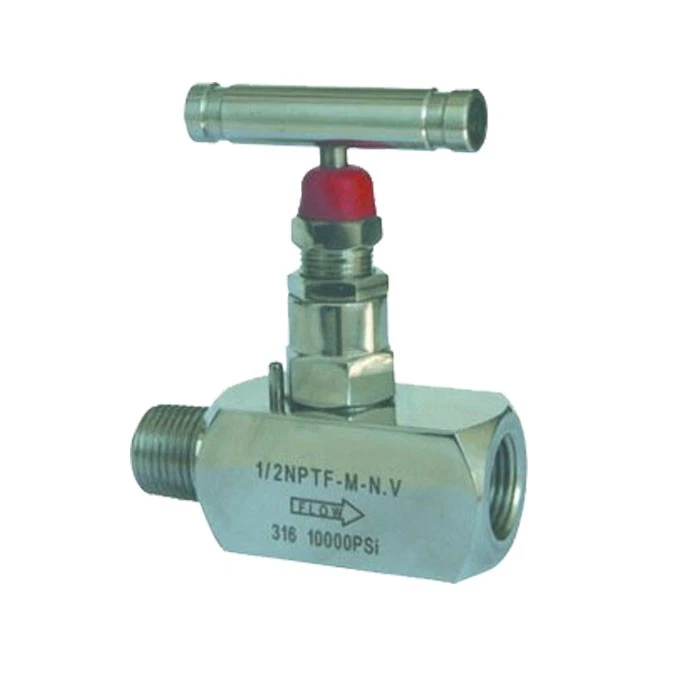

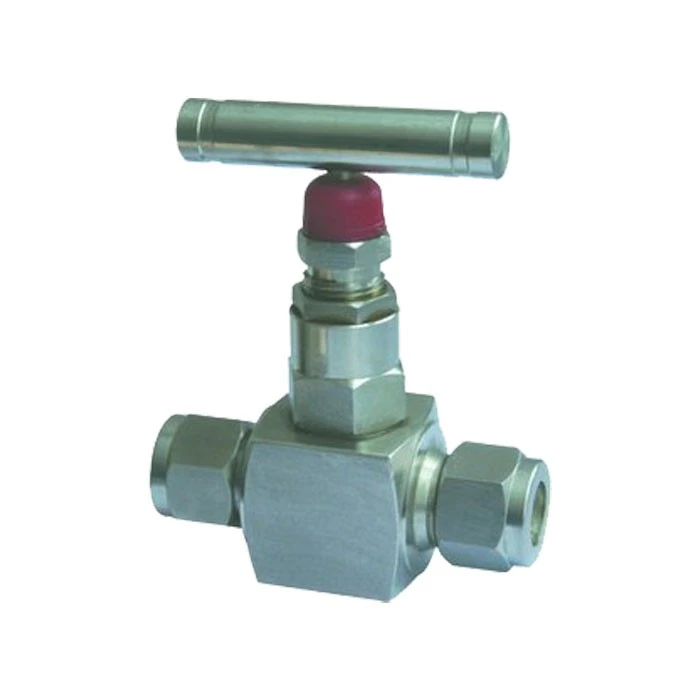

High Pressure Needle Valve is a precise adjustment of the valve, the use of a wide range, such as flame cutting with cutting distance, adjust the flame temperature knob is a needle valve. Instrument needle valve is an important part of the instrument measuring pipeline system, mainly includes globe valve and ball valve, its function is to open or cut off the pipeline access.

● A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities.

● The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away.

● The core and the stem is of lapped joint with the functions of up sealing.

● Vertical hard sealing is used between the core and the body, also between the seat and the body.

● Non-rotational ball-shaped stem head and adjustable stem head can be supplied.

Specifications

Size Range	Body Material
1/4"-1" DN6-DN25	SS316, A105
Pressure Rating	Disc Material
3000psi-10000psi	SS316, A105
End Connection	Seat Material
BW, SW, NPT (M, F), BSPT (M, F)	SS316
Structure Style	Stem Material
Full Port	SS304, SS316
Actuator Options	Design Standard
Manual	ASME B16.34
Temperature Range	Face to Face Standard
-15℃~230℃	ASME B16.10
Connection Standard	Test Standard
Butt Weld: ASME B16.25, GB/T 12224	API 598, JB/T 9092, GB/T 13927

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
