Description & Features

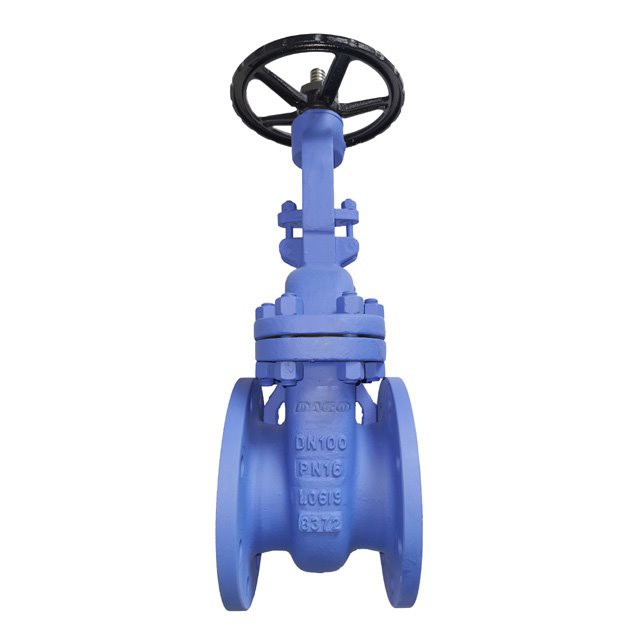

DIN gate valve is a device widely used in Thermal oil system, steam system, hot and cold water system for connecting or cutting off the medium in the pipeline opening and closing. Gate valves are characterized by a traveling wedge, which is moved with the operation of the stem nut. The wedge travels perpendicular to the direction of the flow. Gate valves usually have a minimum pressure drop when fully open, provide tight shut-off when fully closed, and remain relatively free of contamination buildup.

● Advanced technology to ensure that the valve body has no sand holes, surface more smooth and quality more reliable.

● Overlay welded seat can keep reliable sealing under severe conditions.

● Ergonomic hand wheel. It provide longer service life and easier Operation.

Specifications

Size Range	Body Material
DN40-DN1200	GS-C25 (1.0619/WCB), 1.4308 (CF8), 1.4408 (CF8M) etc.
Pressure Rating	Wedge Material
PN16-PN320	GS-C25 (1.0619/WCB) + 13Cr, 1.4308 (CF8), 1.4408 (CF8M) etc.
End Connection	Seat Material
Flange (FF, RF, RJ), Butt Welding	13Cr,STL, 304, 316, Monel etc.
Structure Style	Stem Material
Full Port, OS&Y, Bolted Bonnet / Pressure Seal Bonnet Solid Wedge	X20Cr13, X6CrNiTi18-10, X5CrNiMo17-12-2 etc.
Actuator Options	Design Standard
Handwheel, Bevel Gear, Pneumatic, Electric	API 600 API6D
Temperature Range	Face to Face Standard
29～425℃ B12	ASME B16.10
Connection Standard	Test Standard
Flange Drilling: ASME B 16.5, ASME B16.47

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
