Description & Features

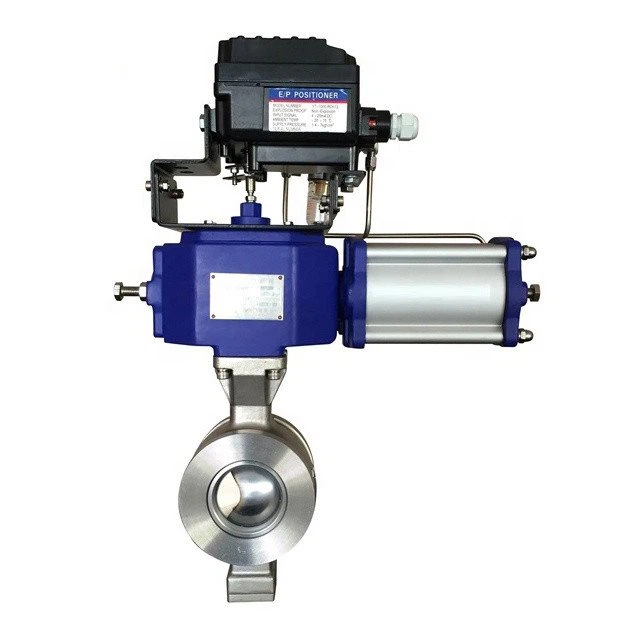

Pneumatic Segment Ball Valve has the characteristics of large circulation capacity, high adjusting precision, large adjustable ratio, good sealing and light weight. It is suitable for most occasions except small caliber, corner type and three way connection. It's the best product to replace imported products, especially for mud and fiber medium, as well as medium containing small solid suspension. It is widely used in the automation system of paper making, sugar making, petroleum, chemical, metallurgy, air conditioning, fire protection and water supply and drainage.

● The V type disc assures smooth and accurate throttling actions on a wide range of applications, such as paper pulp With the pneumatic actuator and positioner, the valve can provides automatic control for flow, temperature, pressure.

● Blow-out Proof Stem

● ISO Integral Mounting Flange

● Anti-Static Construction

● Fugitive Emission Control Device

Specifications

Size Range	Body Material
1"-20" DN25-DN500	WCB, CF8, CF8M
1"-20" DN25-DN500	WCB, CF8, CF8M
Pressure Rating	Ball Material
Class150 PN10-PN16	CF8 / CF8M + Cr / SFNI / Tungsten Carbide (WC) / Chromium Carbide
Class150 PN10-PN16
End Connection	Seat Material
Flange (FF, RF), Wafer	304/316+hard alloy overlaid, 304/316+PTFE
Structure Style	Stem Material
V port, Eccentric	SS410, SS304, SS316, 17-4PH
Actuator Options	Design Standard
Pneumatic	ASME B16.34
Temperature Range	Face to Face Standard
-29℃~150℃	MFR STD
Connection Standard	Test Standard
Flange Drilling: ASME B16.5, GB/T 9113, EN 1092	ASME B16.104

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
