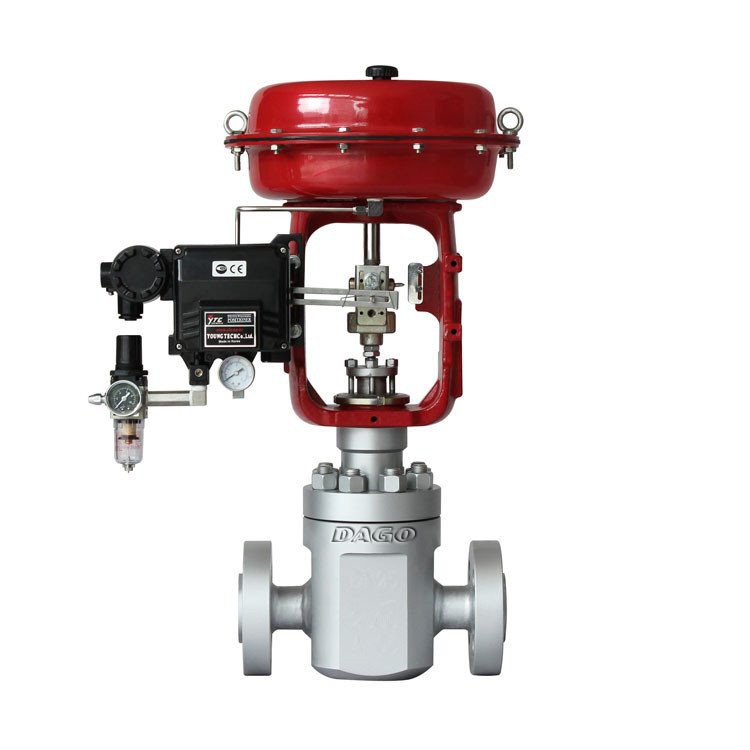

High-Quality Pneumatic Control Air Solenoid Valve DC24V AC24V AC110V AC220V
Product Introduction
We have been leading the direction of China's Triple Offset Metal Seat Butterfly Valve, Air Pressure Self-Operated Regulator Valve, Swing Check Valve, with high user satisfaction, strong market competitiveness, and market share and popularity ranking the forefront in the industry. We wholeheartedly welcome the patronage of new and old customers from all walks of life, and work with you towards a better, stronger and higher goal! We believe that providing customers with high quality products and satisfactory services is the vision of enterprise development.
Description & Features
Pneumatic Air Control Valve which controls the ratio of fuel to air in the intake manifold of the engine includes a valve assembly which is operative in response to the combined action of the negative pressure existing in the intake manifold and positive pressure from an air pump operated by the engine. When the sum of the negative and positive pressures acting on opposite sides of a diaphragm are sufficient to overcome a spring force on the negative pressure side of the diaphragm the movement of the diaphragm will cause the operation of the valve to admit atmospheric air pressure either directly into the intake manifold or to a fuel regulating device to operate a further valve to reduce the supply of fuel to the carburetor.
● It is a right-angle rotation structure, which is composed of V-shaped valve body, pneumatic actuator, positioner and other accessories. There is a natural flow characteristic of approximately equal ratio; Double bearing structure, small starting torque, better sensitivity and induction speed; Super shear ability.
● The purpose and characteristics of the pneumatic control valve is a right Angle rotation structure, it and the valve positioner matching use, can achieve proportional adjustment; V-type spool is most suitable for various adjustment occasions, with large rated flow coefficient, adjustable ratio, good sealing effect, sensitive adjustment performance, small volume, vertical horizontal installation.
Specifications
Size Range | Body Material |
3/4"-12" DN20-DN300 | WCB, CF8, CF8M, CF3, CF3M, etc |
Pressure Rating | Plug Material |
Class150-Class600 PN16-PN64 | SS420, SS304, SS316 +STL |
End Connection | Seat Material |
Flange (FF, RF, RJ), Butt Welding | SS304+STL, SS316+STL |
Structure Style | Stem Material |
Single seat, Sleeve, Cage | A182 F6a, 304, 316, 17-4PH, F11, etc. |
Actuator Options | Design Standard |
Pneumatic | IEC60534 |
Temperature Range | Face to Face Standard |
-60℃~450℃ | MFD |
Connection Standard | Leakage Standard |
Flange Drilling: ANSI/ASME B16.5, HG/T20592, EN1092-1 Butt Weld: ASME B16.25, GB/T 12224 | ANSI B16.104 -IV |
Brand | DAGO or OEM |
Test | 100% quantity tested before delivery |
Guarantee | 12 months from date of shipment or Negotiable |
MOQ | 1 Set |
Sample | Available |
Color | Customer required or manufacturer default |
Packing | Plastic bag wrapped inside, seaworthy wooden case outside |
Certificate | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
Country of Origin | Zhejiang, China |
HS Code | 848180 (universal), 8481804090 (China) |
Port | Shanghai or Ningbo |
Payment Terms | T/T, L/C, Western Union |
Our company relies on the advantage of strong market resources to continuously develop new series of High-Quality Pneumatic Control Air Solenoid Valve DC24V AC24V AC110V AC220V. In order to broaden the industrial model and improve the level of profitability, our company cooperates with other advantageous enterprises to achieve win-win results. We combine advanced information technology and management methods from abroad with the specific realities of domestic companies.
