Description & Features

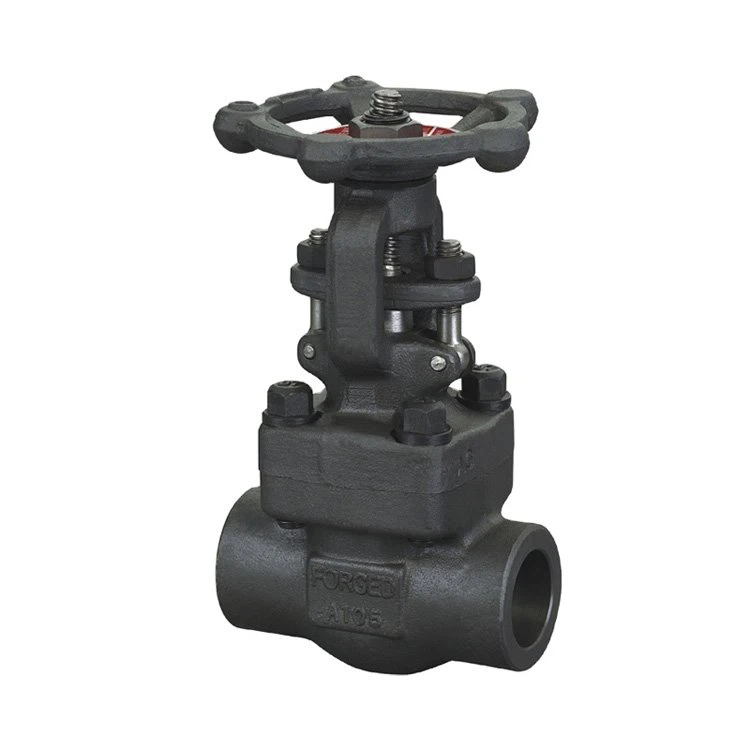

API602 forged gate valve is designed for use in high temperature steam and water, this multipurpose gate valve can be used in a wide variety of general purpose applications including vents, drains and isolation of compressors, condensers, heaters, pumps, water lines, heat exchangers, bypass lines, flash tanks, control valves, etc.

● Forged Steel, Outside Screw and Yoke, Rising Stem

● Non-Rising Handwheel, Integral Backseat

● Solid Wedge, Welded seat Rings, Sprial Wound Gasket

● Reduced Bore or Full Port

● Socket Welded, Threaded, Butt Welded, Flanged End

Specifications

Size Range	Body Material
1/4"– 3"	A105, LF2, F11, F22, F304 (L), F316 (L), Alloy 20, F51, Monel etc.
Pressure Rating	Wedge Material
Class150-Class4500	F6a (HF), F304 (L), F316 (L), F51 etc.
End Connection	Seat Material
NPT, BW, SW, RF, RJ	SS410 (HF), F304 (L), F316 (L), F51 etc.
Structure Style	Stem Material
Reduced Port / Full Port, OS&Y, Bolted Bonnet / Pressure Sealed Bonnet / Welded Bonnet	SS410, F304 (L), F316 (L), F51 etc.
Actuator Options	Design Standard
Handwheel, Pneumatic, Electric, Hydraulic	API602
Temperature Range	Face to Face Standard
-196℃~650℃	API602
Connection Standard	Test Standard
Flange Drilling: ASME B16.5 Butt Weld: ASME B16.25 Socket Weld: ASME B16.11 Thread: ANSI B1.20.1	API598

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
