Description & Features

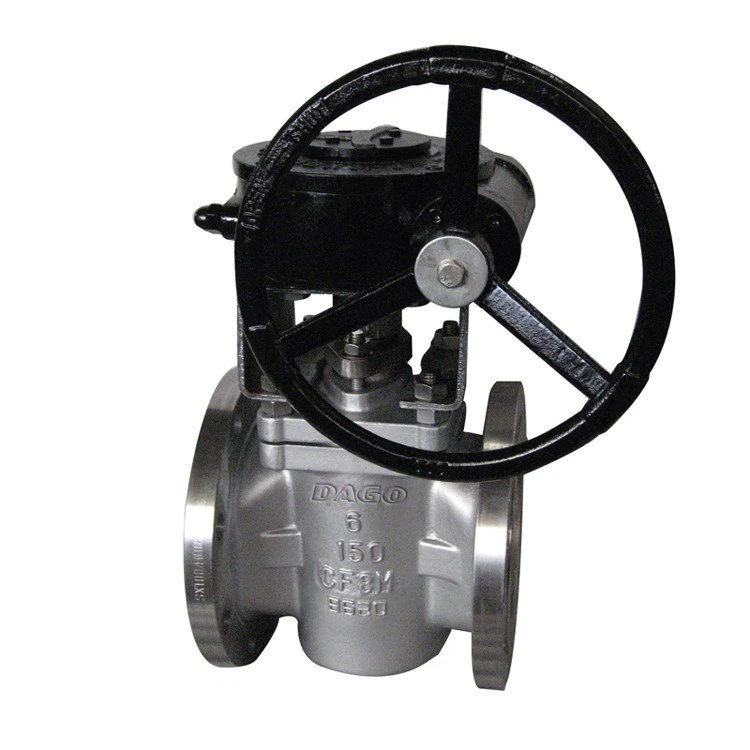

Sleeve Plug Valve are non-lubricated quarter-turn valves that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications they operate virtually maintenance free for decades. Our valves are used for on/off and throttling service in demanding process applications with media temperatures ranging from -29℃ to 180℃. Body & plug materials range from cast steel and stainless steel to other special alloy steel.

● Plug valve with Sleeve type PTFE seal serves as cutting and connecting medium on the pipeline.

● It can be used in large-scale Chemical industry. It is suitable for water, steam, oil, other corrosive acid.

● It has reasonable structure, Reliable seal face (Sleeve type PTFE ), Excellent performance and perfect appearance.

● It adopt all around Sleeve type PTFE seal, can ensure zero leakage. Special 360º metal edge can assure fix Sleeve well.

● It is designed with no cavity, therefore medium will not accumulate.

● It can be used as double -direction flow. It is very convenient for installation and usage.

● Material and flange dimension can be selected by practical working condition.

Specifications

Size Range	Body Material
1/2"-14" DN15-DN350	WCB, CF8, CF8M
1/2"-14" DN15-DN350	WCB, CF8, CF8M
Pressure Rating	Plug Material
Class150-Class900 PN16-PN160	CF8, CF8M
Class150-Class900 PN16-PN160	CF8, CF8M
End Connection	Seat Material
Flange (FF, RF, RJ)	PTFE, PPL
Structure Style	Stem Material
Sleeve Type	304, 316, 17-4PH, F11.
Actuator Options	Design Standard
Lever, Worm Gear, Pneumatic, Electric	API599, API 6D
Temperature Range	Face to Face Standard
-29℃~180℃	ASME B16.10
Connection Standard	Test Standard
Flange Drilling: ASME B16.5, GB/T 9113, JB/T 79	API598, API6D

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
