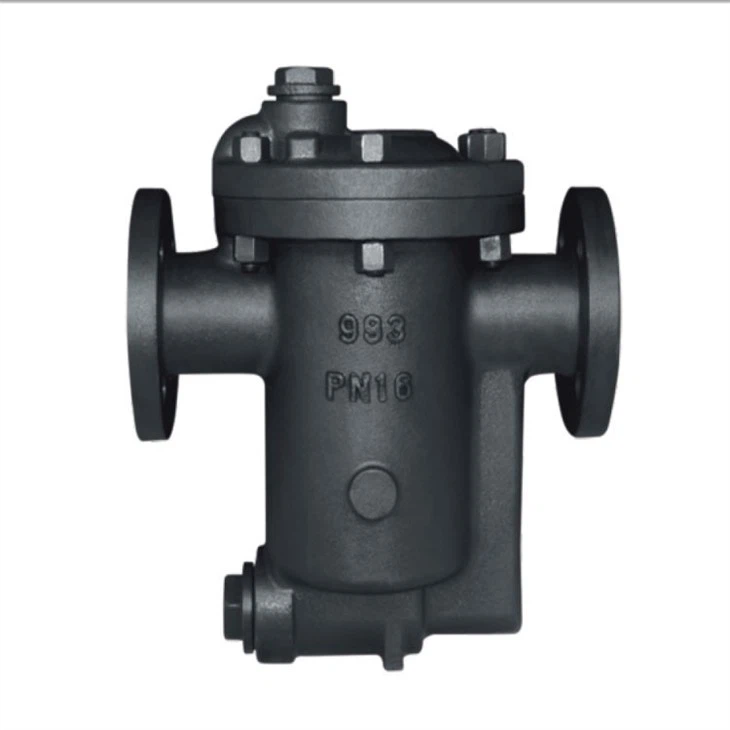

Spirax Sarco Inverted Bucket Steam Trap
Description & Features
Spirax Sarco Inverted Bucket Steam Trap is a valve used in steam pipe networks and equipment to automatically discharge condensed water, air and other non-condensable gases and prevent water vapor leakage. The heart of its simple design is a unique leverage system that multiplies the force provided by the bucket to open the valve against pressure. Spirax Sarco Inverted Bucket Steam Trap is the most reliable steam trap operating principle known.
● Spirax Sarco Inverted Bucket Steam Trap uses a traditional frictionless mechanism to reduce friction damage to the valve itself.
● It has excellent back pressure performance and is suitable for recycling systems.
● The material of the whole mechanism is all stainless steel, and the valve seat is hardened stainless steel, which makes it have good corrosion resistance.
● It emits non-condensable gas when it is fully operational.
Specifications
Size Range | Body Material |
1/2"-3" DN15-DN80 | WCB, CF8, CF8M |
Pressure Rating | Disc Material |
Class150 PN16-PN25 | 420, 304, 316 |
End Connection | Seat Material |
Flange, BSPT, NPT | 420, 304, 316 |
Structure Style | Screen Material |
Full Port | 304, 316 |
Actuator Options | Design Standard |
Lever | IS0 6552, EN26704 |
Temperature Range | Face to Face Standard |
-29℃~300℃ | EN 26554 |
Connection Standard | Test Standard |
Flange Drilling: EN 1092, BSPT, NPT | EN 26948 |
Brand | DAGO or OEM |
Test | 100% quantity tested before delivery |
Guarantee | 12 months from date of shipment or Negotiable |
MOQ | 1 Set |
Sample | Available |
Color | Customer required or manufacturer default |
Packing | Plastic bag wrapped inside, seaworthy wooden case outside |
Certificate | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
Country of Origin | Zhejiang, China |
HS Code | 848180 (universal), 8481804090 (China) |
Port | Shanghai or Ningbo |
Payment Terms | T/T, L/C, Western Union |
