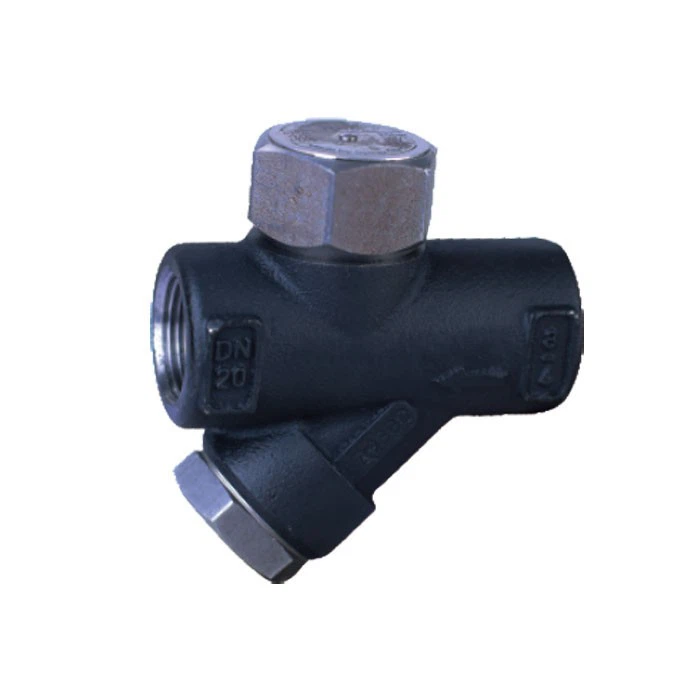

Spirax Sarco Thermodynamic Steam Trap

Spirax Sarco Thermodynamic Steam Trap are available with balanced-pressure bellows or wafer-type elements, which are constructed in a variety of materials in both stainless steel and carbon steel. These traps are used on applications with very light condensate loads.

Description & Features

● Small volume, light weight, large flow capacity, and anti-freeze.

● The material of integral disc and valve seat is harden stainless steel with fine mirror polish – excellent sealing quality.

● Horizontal installation

● Easy in-line inspection and maintenance without removing from the pipeline.

● Insensitive to waterhammer and anti-back pressure.

Specifications

Size Range	Body Material
1/2"-1" DN15-DN25	WCB, CF8, CF8M
1/2"-1" DN15-DN25	WCB, CF8, CF8M
Pressure Rating	Disc Material
Class150 PN16-PN25	420, 304, 316
Class150 PN16-PN25	420, 304, 316
End Connection	Seat Material
Flange, BSPT, NPT	420, 304, 316
Structure Style	Screen Material
Full Port	304, 316
Actuator Options	Design Standard
/	IS0 6552, EN26704
Temperature Range	Face to Face Standard
-29℃~300℃	EN 26554
Connection Standard	Test Standard
Flange Drilling: ASME B16.5, EN1092-1, GB/T 9113, JB/T 79 BSPT, NPT	EN 26948
	EN 26948

Brand	DAGO or OEM
Test	100% quantity tested before delivery
Guarantee	12 months from date of shipment or Negotiable
MOQ	1 Set
Sample	Available
Color	Customer required or manufacturer default
Packing	Plastic bag wrapped inside, seaworthy wooden case outside
Certificate	API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate
Country of Origin	Zhejiang, China
HS Code	848180 (universal), 8481804090 (China)
Port	Shanghai or Ningbo
Payment Terms	T/T, L/C, Western Union
