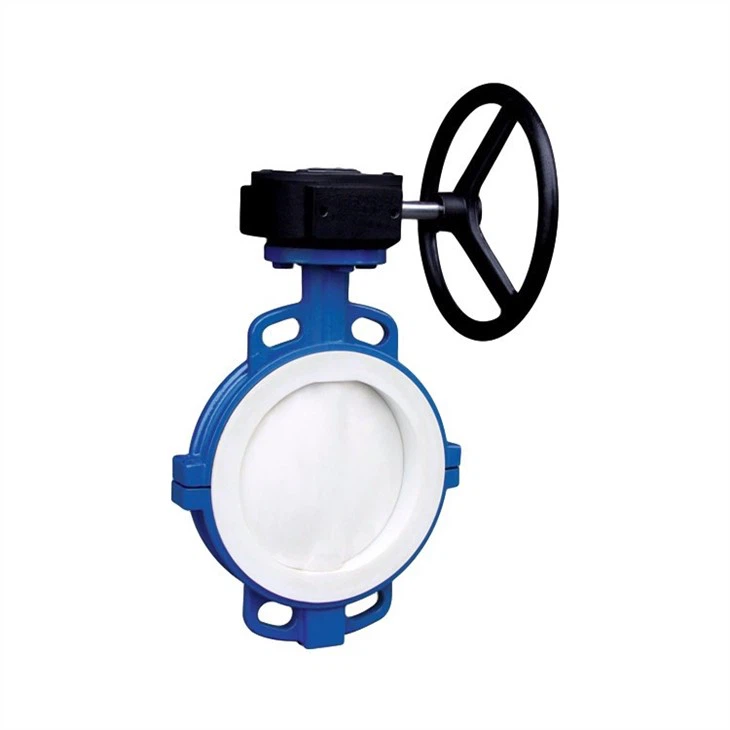

Resilient Seat Butterfly Valve
Description & Features
Resilient seated butterfly valve is also called as a concentric butterfly valve. It is made with a resilient or rubber seat located between the internal wall of the butterfly valve and the outer diameter of the disc. The seat is usually made from EPDM rubber or nitrile rubber (BUNA-N).
This valve is widely used in water, wastewater, and other fluid industrial operations. It is ideal for process media that have few impurities as the butterfly or disc is in contact with the valve seat.
Because of its design and make, the valve is a reliable, light, and cost-efficient solution for high-pressure applications.
● Rubber/PTFE seat with stable valve torque.
● It is compact and light, easy to assemble and repair, and can be installed at any position.
● The structure is simple and compact, the operation torque is small, and the 90 degree rotation opens quickly.
● Flow characteristic tends to straight line and has good regulation performance.
Specifications
Size Range | Body Material |
2"-48" DN50-DN1200 | Ductile Iron, WCB, CF8, CF8M |
Pressure Rating | Disc Material |
Class125-Class150 PN10-PN16 | Ductile Iron, WCB, CF8, CF8M, Al-bronze C958 |
End Connection | Seat Material |
Flange, Wafer, Lug | NBR, EPDM, PTFE, VITON |
Structure Style | Stem Material |
Double Eccentric, Concentric | SS416, SS410, 17-4PH, SS304, SS316 |
Actuator Options | Design Standard |
Manual, Worm gear, Pneumatic, Electric-Motorized | MSS SP-67, API609, EN593 |
Temperature Range | Face to Face Standard |
0℃~200℃ | API609, ISO5752 series 20, BS5155.1 |
Connection Standard | Test Standard |
Flange Drilling: EN1092-1, ANSI B16.5, BS4504. | API 598 |
Brand | DAGO or OEM |
Test | 100% quantity tested before delivery |
Guarantee | 12 months from date of shipment or Negotiable |
MOQ | 1 Set |
Sample | Available |
Color | Customer required or manufacturer default |
Packing | Plastic bag wrapped inside, seaworthy wooden case outside |
Certificate | API6D, CE, TUV, ISO9001, ISO14001, ISO45001, Mill Test Certificate |
Country of Origin | Zhejiang, China |
HS Code | 848180 (universal), 8481804090 (China) |
Port | Shanghai or Ningbo |
Payment Terms | T/T, L/C, Western Union |
